Publish org-roam notes to personal wiki using ox-hugo and Quartz

Initialize site with Quartz

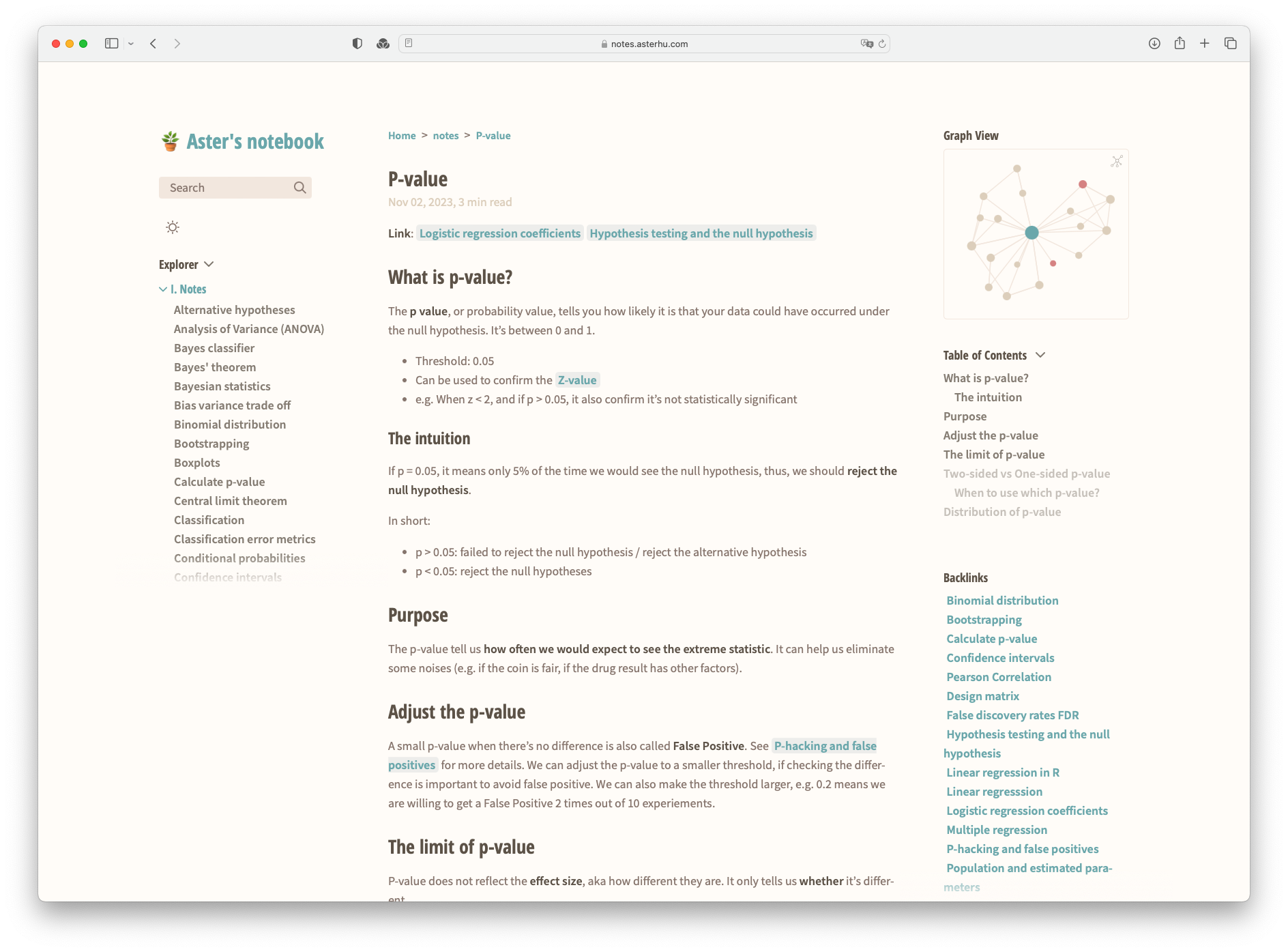

Quartz is extremely easy to set up, even if you aren’t familiar with hugo or any other static site generator. Following the getting started guide, the initialization only takes few minutes and it’s already a nice-looking out-of-box digital garden site.

During the initialization, it asked for content info and I chose Empty quartz for a fresh site. It also asked how it should handle links and I chose the shortest path.

◇  Choose how to initialize the content in `/path/of/quartz/content`
│  Empty Quartz

◇  Choose how Quartz should resolve links in your content. You can change this later in
`quartz.config.ts`.
│  Treat links as shortest path

After the initialization, I ran npx quartz build --serve to preview. The site is ready, and I just need to put notes in markdown format in content/ folder.

Directory structure and config files

├── content
│   ├── braindump
│   ├── notes
│   └── index.md
├── ...
├── quartz.config.ts
└── quartz.layout.ts

Similar to hugo, Quartz also uses content/ folder to store content files of the site, where the index.md is the landing page of Quartz.

Quartz supports nested folders and will display them in Explorer and Folder Listings, and I put braindump and notes as subfolders to separate my personal and study notes under content/.

quartz.config.ts and quartz.layout.ts are the two configuration files, in which quartz.config.ts defines the website’s basic settings such as plugins, site url, website title, etc., while quartz.layout.ts controls the site’s layout and style. The variables are quite self-explainatory, and Quartz’s configuration guide is everything you need to complete the setup.

To enable its compatibility with the hugo-flavoured markdown exported from org-mode, simply add Plugin.OxHugoFlavouredMarkdown to the quartz.config.ts file:

 plugins: {
  transformers: [
    // ...
    Plugin.OxHugoFlavouredMarkdown(),
    Plugin.GitHubFlavoredMarkdown(),
    // ...
  ],
},

Hosting and deployment

Quartz provides guide on setting up Github repository and hosting from different hosting providers. I use Cloudflare Pages, but any other provides that can deploy static HTML should work.

Front matter in org-roam notes

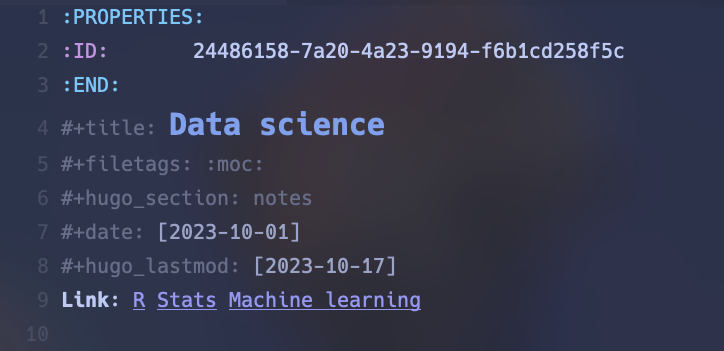

Quartz and hugo shares the same front matter, and because ox-hugo support hugo’s front matter, it also supports Quartz’s without any modification. When I take notes in org-mode, I use templates to add the metadata based on ox-hugo’s documentation, and ox-hugo will convert those metadata to the front matter when exporting org to markdown files.

For the front matter in the note level,I try to keep it simple (additional configurations will be covered in folder level, see below):

Org-roam notes’ front matter

• #+filetags: the tags of the note in the Quartz site
• #+hugo_section: the sub folder of Quartz’s content/ directory
• #+date: self-explanatory
• #+hugo_lastmod: define the last modified date, which is the preferred date I set in my quartz.config.ts

Ox-hugo export config

Based on ox-hugo’s guide about auto-saving, I created a .dir-locals.el file in my org-roam-directory. These settings will be applied to all files under the selected folder.

(("1-main/"
  . ((org-mode . (
                  (eval . (org-hugo-auto-export-mode))
                  (org-hugo-base-dir . "/path/to/digital-garden")
                  (org-hugo-front-matter-format . "yaml")
                  ))
     )))

1-main/ is the folder where the settings will be applied:

• org-hugo-auto-export-mode: ox-hugo’s auto-saving function
• org-hugo-base-dir: in this case, it’s the Quartz directory
• org-hugo-front-matter-format: set the front matter to yaml

Exclude notes from export

To exclude notes that are not to be exported by org-hugo-auto-export-mode, we can define it by adding a special tag #+hugo_tags: noexport to these notes. In my org-roam-capture-templates, I have #+hugo_tags: noexport in front matter for all of my notes. If I want to publish the note, I will remove this tag or comment the line, and ox-hugo will pick it up and export it to markdown.

(setq org-roam-capture-templates
      '(("o" "moc" plain
         "\n*Link*:  %?\n\n"
         :if-new (file+head "1-main/${slug}.org" "#+title: ${title}\n#+filetags: :moc:\n#+hugo_section: braindump\n#+date: %u\n#+hugo_lastmod: %u\n#+hugo_tags: noexport\n")
         :immediate-finish t
         :unnarrowed t
         :empty-lines-after 1)))

If there’s a specific subtree I do not want to export, I can also exclude it by tagging with :noexport:.

Auto-update timestamp for org-roam notes on save

I also include a function in my Emacs config so that it automatically updates #+hugo_lastmod whenever I press save. Of course, I can also use ox-hugo’s #+hugo_auto_set_lastmod: t, but I prefer to have the date shown within my org files.

;; Update last modified date for ox-hugo export
(after! org
  (setq time-stamp-active t
        time-stamp-start "#\\+hugo_lastmod:[ \t]*"
        time-stamp-end "$"
        time-stamp-format "\[%Y-%m-%d\]")
  (add-hook 'before-save-hook 'time-stamp))

Callout formatting

Because I’m writing in org, I won’t be able to use some nice features that are packaged with Quartz such as the Obsidian-style callout. A workaround is to insert #+begin_export md snippet to show the callout box in the published site:

#+begin_export md
> [!note] An intuitive way to think about why it makes more sense.
> The distribution that are closer to normal distribution usually makes more sense. In this example, the distribution of group C and of D in alternative hypothesis are more closer to normal distribution (compare the data points vs the mean)
#+end_export

Output:

Image handling between org-mode and Quartz

For image linking, it becomes a bit tricky. Ox-hugo will copy images to static/ folder, which Quartz doesn’t use and will be emitted. I didn’t find the option to change the image output directory in ox-hugo, so I ended up manually copying all my images from static/ox-hugo to content/ox-hugo when I push the changes.

Speed of global graph

In Quartz, the local graph looks decent, but the global graph gets significantly slower with the increasing number of notes. I do not use the global graph in Quartz (I prefer org roam ui mode that comes with org-roam) so it’s not an issue for me. And if I have to, I can always refer to Hugo Cisneros’ blog to build one from scratch from the org-roam db.
